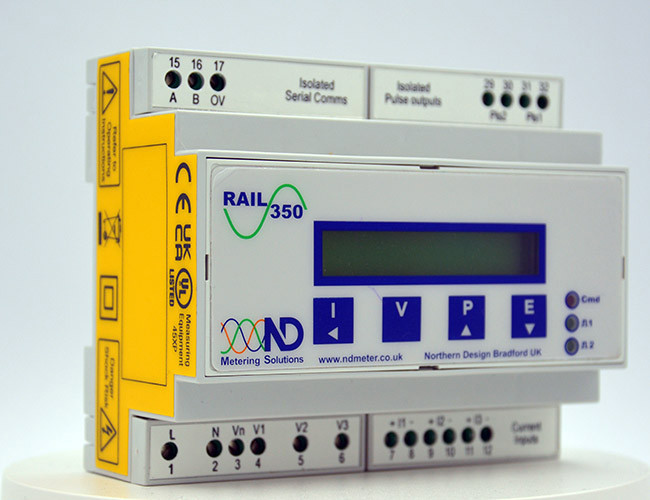

Energy and Power Multi-function Sub-Meter Meters

 1 x three phase load Standard Format:

• DIN Rail mounted case • back-lit display

 • large rising cage terminals for cables from 0.25mm to 4mm sq. ​Format Options:

 • 333mV and 5/1Amp current input versions

• 230V and 110V versions

 • plastic and metal enclosures, pre-wired panels Standard Parameters:

 • kWh accuracy, Class 1 (EN 62053-21)

 • V, I, kW, kWh, kvarh, frequency, power factor

 • Peak and demand values

• Hours run meter Parameter Options:

• Individual harmonics to 15th and THD to 30th (25th 60Hz) (via Modbus only) Standard Communications:

• 2 Pulse Outputs Communications Options:

• Modbus RS-485
